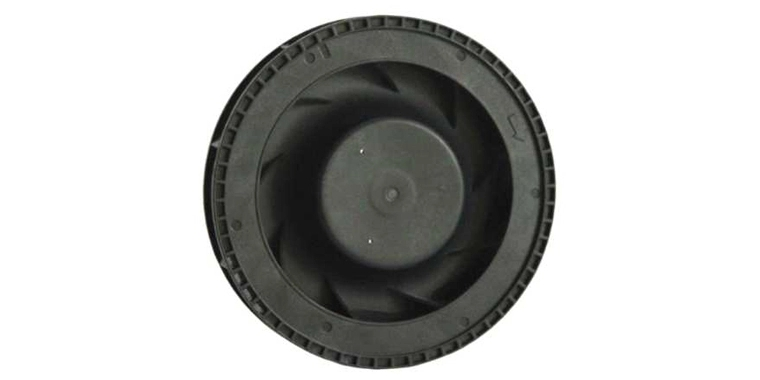

Specifications of DFX10025 Centrifugal Fan
| Listed | Rated | Operating | Rated Current | Rated Speed | Air | Static | Noise | Available Features (Optional) | Weight | |||
| Model | Voltage | Voltage | Flow | pressure | Level | |||||||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | g | |||||
| Tachometer | Rotation | Thermal | Pulse Width | |||||||||
| Output | Detector | Control | Modulation | |||||||||
| DFX102512H | 12 | 6.0~13.8 | 1.00 | 5,300 | 51.20 | 34.30 | 57.20 | ◆ | ◆ | ◆ | ◆ | 139.0 |
| DFX102512M | 6.0~13.8 | 0.55 | 4,300 | 41.50 | 22.60 | 51.70 | ◆ | ◆ | ◆ | ◆ | ||
| DFX102512L | 6.0~13.8 | 0.40 | 3,200 | 30.90 | 12.50 | 44.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX102524H | 24 | 12.0~27.6 | 0.50 | 5,300 | 51.20 | 34.30 | 57.20 | ◆ | ◆ | ◆ | ◆ | |
| DFX102524M | 12.0~27.6 | 0.30 | 4,300 | 41.50 | 22.60 | 51.70 | ◆ | ◆ | ◆ | ◆ | ||
| DFX102524L | 12.0~27.6 | 0.20 | 3,200 | 30.90 | 12.50 | 44.00 | ◆ | ◆ | ◆ | ◆ | ||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX10025 Centrifugal Fan
Frame: Die-cast Aluminum Alloy
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing
Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃,5%～90%RH
Storage Temperature and Humidity: -40℃～80℃,5%～95%RH
As a axial cooling fan supplier for 100mm cooling fan, Xie Heng Da has committed to the axial cooler fan development for more than 17 years.
+
+
+
