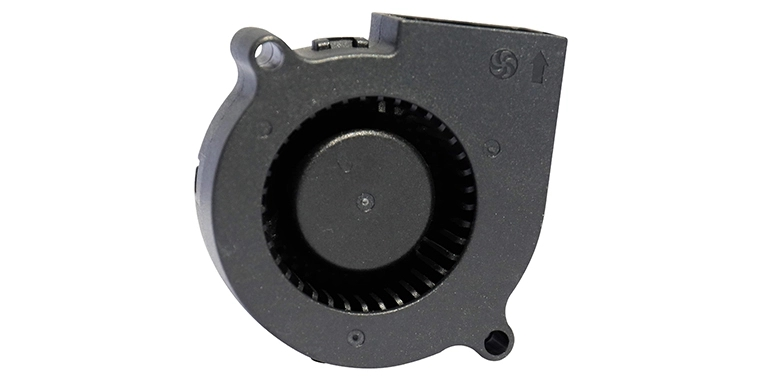

Specifications of DFX6020 DC Blower Fan
| Listed | Rated | Operating | Rated Current | Rated Speed | Air | Static | Noise | Available Features (Optional) | Weight | |||
| Model | Voltage | Voltage | Flow | pressure | Level | |||||||
| （VDC） | （VDC） | （A） | （RPM） | （CFM） | (mmH2O) | (dBA) | g | |||||
| Tachometer | Rotation | Thermal | Pulse Width | |||||||||
| Output | Detector | Control | Modulation | |||||||||
| DFX602005H | 5 | 3.5~5.75 | 0.80 | 5,000 | 6.30 | 17.50 | 43.30 | ◆ | ◆ | ◆ | ◆ | 35 |
| DFX602005M | 3.5~5.75 | 0.40 | 4,000 | 5.10 | 11.20 | 37.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX602005L | 3.5~5.75 | 0.10 | 3,000 | 3.80 | 6.30 | 30.00 | ◆ | ◆ | ◆ | ◆ | ||
| DFX602012H | 12 | 6.0~13.8 | 0.40 | 5,000 | 6.30 | 17.50 | 43.30 | ◆ | ◆ | ◆ | ◆ | |
| DFX602012M | 6.0~13.8 | 0.20 | 4,000 | 5.10 | 11.20 | 37.50 | ◆ | ◆ | ◆ | ◆ | ||
| DFX602012L | 6.0~13.8 | 0.10 | 3,000 | 3.80 | 6.30 | 30.00 | ◆ | ◆ | ◆ | ◆ | ||
| X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice | ||||||||||||
Description of DFX6020 DC Blower Fan
Frame: PBT OF UL 94V-0
Impeller: PBT OF UL 94V-0
Bearing Type: Sleeve Bearing / Ball Bearing / Hydro Bearing
Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black
Motor Protection: Reverse Polarity Protected; Automatic Restart
Operating Temperature and Humidity: -10℃～70℃,5%～90%RH
Storage Temperature and Humidity: -40℃～80℃,5%～95%RH
Xie Heng Da mission is to craft OEM ODM 60mm blower that enhance the quality of life.
+
+
+
